2. Overview of the technology
A complete videoconference system consists of some basic components, some common
(and necessary) additional equipment and some extra additional and useful peripherals.
The basic components of a videoconferencing system are:
- Codec - the central unit that compresses outgoing and decompresses incoming video signal
- Digital camera - records pictures from your room
- Microphone - records the sound in your room
- Monitor with loudspeakers - see and hear the far end part(s)
Common additional peripherals:
- Ordinary blackboard/whiteboard or flipover
- Document camera
- VHS/DVD-player
- Stationary PC
Additional peripherals:
- Laptop
- Digital whiteboard
- Tablets
- More digital cameras
- Video projector(s)
Please have a look at the following pictures
|

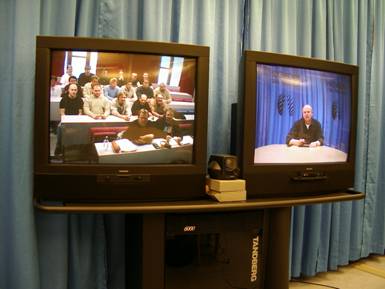

Figure 1. A trolley (on wheels) with two monitors, digital camera and codec (hidden). |
|

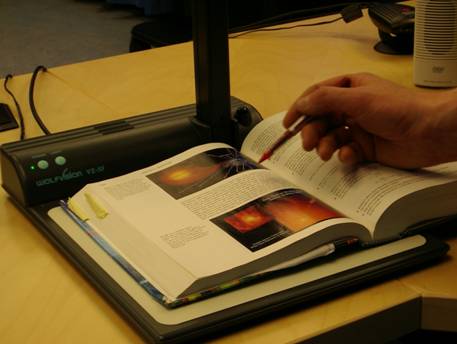

Figure 2Here is a document camera, where you can show the other locations figures and tables from a paper
or a book. Even 3-dimentional objects can be shown to the others. |
|

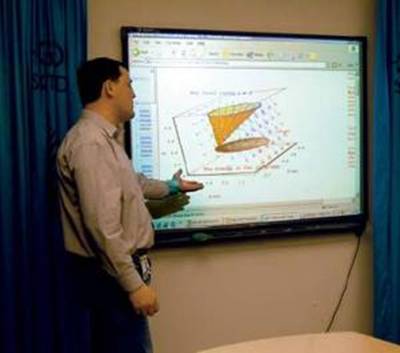

Figure 3. The lecturer is using a digital whiteboard to demonstrate properties of a mathematical
3-dintional object. |
|

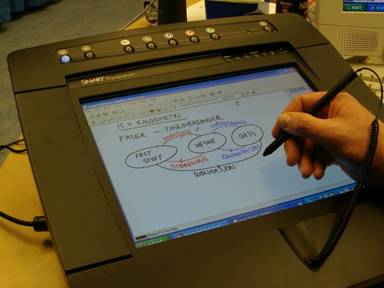

Figure 4.Here is the table version of the digital whiteboard, a so-called tablet. |
Moreover have a look at the following video clips. The use of some peripherals is demonstrated here
|
A
brief historical introduction to the document camera - from the old overhead
projector to an advanced document camera.
|
|
A
varied and structured lecture demands use of different video sources, such as
camera picture, document camera, flip-over and pc.
|
|
